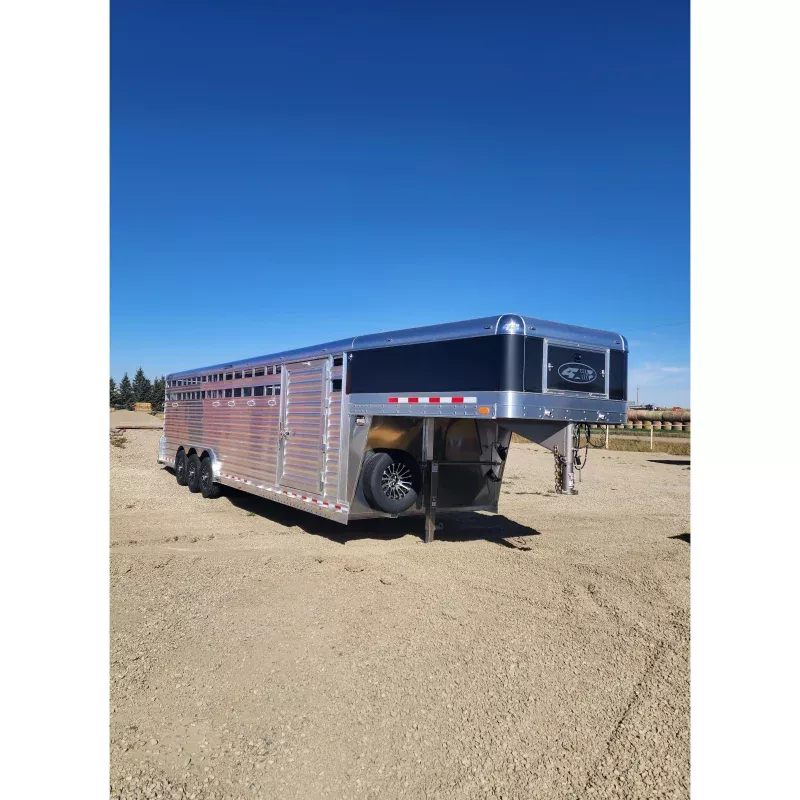

Charcoal Metallic – 43554
7′ Tall
8′ Wide
All Aluminum
2 5/16″ Adjustable Coupler
Single Drop Leg
Removable Jack Handle
Tapered Gooseneck
Polished Corner Caps
Pre-Painted Charcoal Metallic Exterior on Smooth Aluminum
(1) Fold Down Nose Access Door Centered in Gooseneck Nose
Single Side Wall Construction w/ 2 Air Cracks
Slatted Sides w/ Rounded Side Posts
Full Width Drop Partition
(1) 13′ Rolling Gate Frame Assembly – Rolling Gate Rail w/ Settings every 12″ from Drop
(2) Low Pro Center Gates – (1) Full Width Center Gate w/ Large Double Swing Latch in Rolling Gate Frame Assembly, (1) Full Width Center Gate w/ Large Double Swing Slam Latch w/ Outside Release to Start at 19′ from Drop
11′ Rear Compartment
(3) L.E.D. Dome Lights – (1) Per Compartment
(2) 18″ Awning Lights @ Rear Door, (1) @ Curbside
(9) Marker Lights Each Top Rail
Tapered Wheel Wells up to Sides & Ends
(14) Outside Tie Rings – (6) @ Curbside, (6) @ Streetside, (1) @ Rear Post Right Above Rubber Bumper, (1) @ Rear Post Mid Way
Rancher Running Boards
52″ Clear Slatted Solid Side Access Door w/ Reinforcement w/ Butterfly Latch
Full Swing/ Half Slider Slatted Solid Rear Gate w/ Safety Slam Latch
Anti-Rack Hardware on Rear Door
Grease Zerks
Enclosed Wiring
Fully Enclosed Tail Light Gusset
4″ I-Beam Crossmembers on 9 5/8″ Centers
Tread Plate Floor
Skid Plate under Rear of Trailer
(3) 7,000lb Torsion 102″ Axles w/ Electric Brakes
(7) 235/ 85R16 14 Ply Tires
16″ Aluminum Wheels
8 Bolt Hubs
Rubber Dock Bumper
High Turn Signals
L.E.D. Lighting
D.O.T. Tape
Shipping/Curb/GV Weight (kg) – 2857 KG
G.V.W.R. (kg) -11768 KG
